Wood fiber panels with available densities 180 and 210 Kg/m³.
Fibertherm Universal dry 180 e 210 is a wood fiber thermal and acoustic insulation panel with high density for roofs, attics, dry floors. Ideal for insulation in wooden buildings, but also in renovations and new traditional buildings.
The wood fiber panel FiberTherm Universal dry is a thermo-acoustic insulation fixed under the surface finishing layer for roofs and walls. It possesses the ability to increase the insulating power of wooden elements.
With wood fiber FiberTherm Universal dry is possible to obtain a thermo-acoustic insulation of the roof and walls to contribute considerably to the improvement of the quality of life within their own walls of the house. With FiberTherm Universal dry excellent thermal insulation of the solid wood structural elements is obtained. Thanks to the low thermal conductivity and the high thermal resistance, FiberTherm Universal dry protects your environment also from summer heat and winter frost. The density, from about 180 kg/m³ to about 210 kg/m³ and the high specific heat capacity, 2100 J/kgK (more than double the mineral wool), prevent heat from entering even during the hottest days. In this way you can enjoy a pleasant sleep, even under the roof.

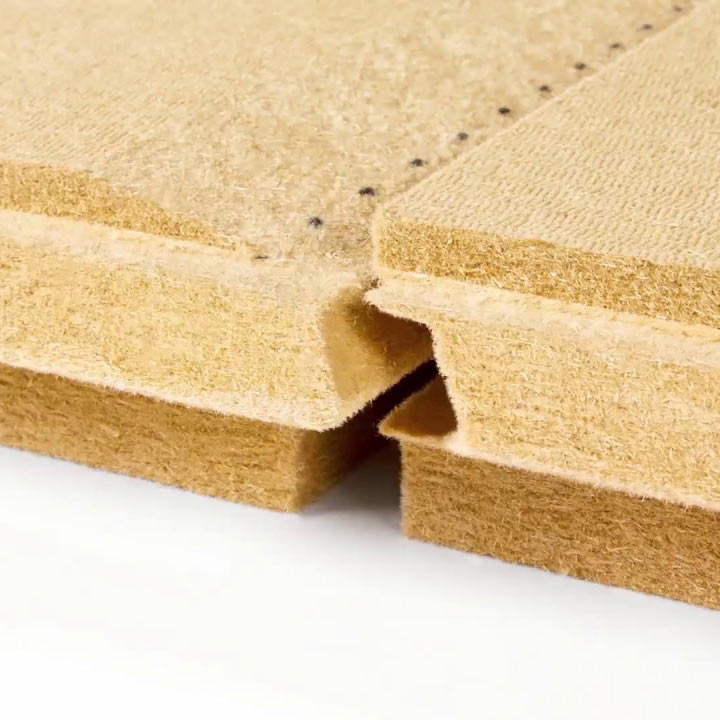

The wood fiber panels FiberTherm Universal dry are particularly stable and light, they are produced by dry process. Available with tongue and groove or sharp edge profile. They have two possible densities equal to 180 kg/m³ and 210 kg/m³.
The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).
The insulating wood fiber panels FiberTherm Universal dry has the following characteristics:
• available up to 100 mm thick;
• excellent insulation properties;
• decreases the thermal bridges in the construction;
• good handling and simple processing;
• effective protection against wind, dust, humidity and noise;
• special rain protection for roofs with inclinations ≥16°;
• particular diffusion capacity, suitable for roofs;
• made with dry system;
• recyclable, ecological, environment-friendly;
• building material tested and authorized according to current European standards.
Thickness | Size mm | Real surface mm | kg/m² | Pan./pallet | m²/pallet | kg/pallet |
---|---|---|---|---|---|---|
35 mm | 2500 x 600 | 2475 x 575 | 7,35 | 66 | 99,00 | approx.770 |
40 mm | 2500 x 600 | 2475 x 575 | 8,40 | 56 | 84,00 | approx.740 |
52 mm | 1880 x 600 | 1855 x 575 | 9,36 | 44 | 46,9 | approx.490 |
60 mm | 1880 x 600 | 1855 x 575 | 10,80 | 38 | 40,5 | approx.500 |
80 mm | 1880 x 600 | 1855 x 575 | 14,40 | 28 | 29,9 | approx.490 |
100 mm | 1880 x 600 | 1855 x 575 | 18,00 | 22 | 23,5 | approx.480 |
Characteristics | Values |
---|---|
Density kg/m³ | approx.210 (35-40 mm) approx.180 (52-100 mm) |
Reaction to fire according to the standard EN 13501-1 | E |
Coefficient of thermal conductivity λD W/(m·K) | approx.0,045 (35-40 mm) approx.0,043 (52-100 mm) |
Specific heat capacity J/(kg·K) | 2.100 |
Resistance to vapor diffusion μ | 5 |
sd value (m) | 0,11(35) / 0,12(40) / 0,16(52) 0,18(60) / 0,24(80) / 0,30(100) |
Thermal resistance RD (m²·K)/W | 0,75(35) / 0,85(40) / 1,20(52) 1,40(60) / 1,85(80) / 2,30(100) |
Compression stress at 10% distorsion (N/mm²) |
0,18 |
Compression resistance (kPa) | 180 |
Tensile resistance (kPa) | ≥25 |
Air flow resistance [(kPa·s)m²] | ≥100 |
Short term water absorbing (kg/m²) | ≤1,0 |
Panels identification | WF-EN 13171-T54 -CS(10/Y)180-TR25-WS1,0-MU3 |
Waste code (EAK) | 030105/170201 |
Flooring system using wood fiber panels with high density and excellent compression resistance Fibertherm Universal dry and cement bonded particle boards BetonWood.

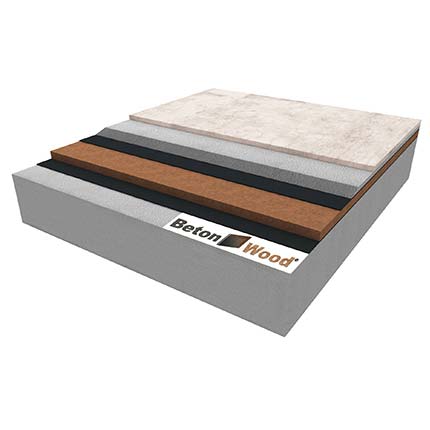

Flooring system using wood fiber panels Fibertherm Universal dry with high density and high thermal insulation, concrete constructional work and cement bonded particle boards BetonWood.
Screed system on corrugated metal sheet with high density and high compression resistance wood fiber Fibertherm Universal dry and a double layer of cement bonded particle boards BetonWood.
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Universal dry and cement bonded particle boards with excellent thermal insulation power on matchboarding.

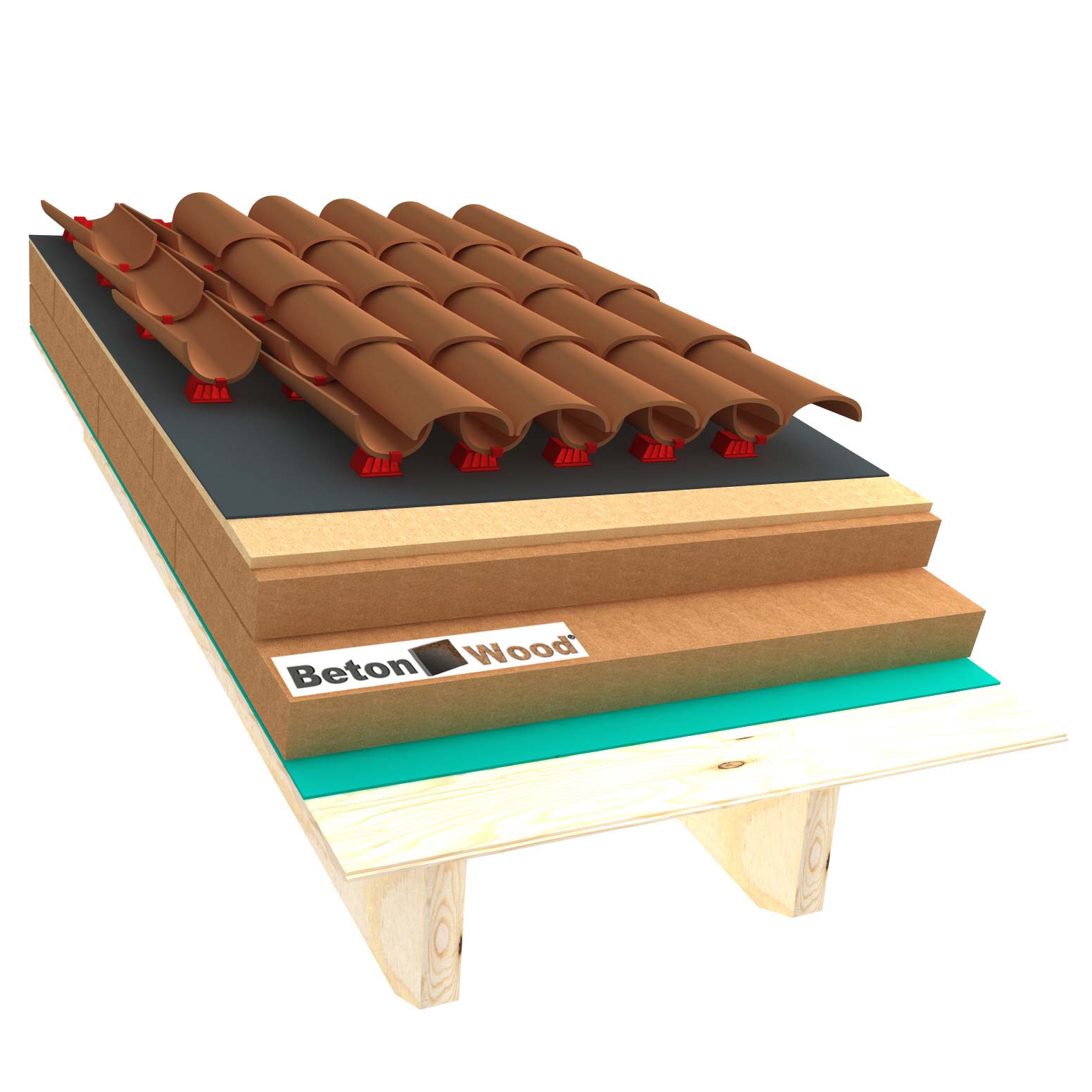

Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Isorel, Universal dry with excellent thermal insulation power on matchboarding.

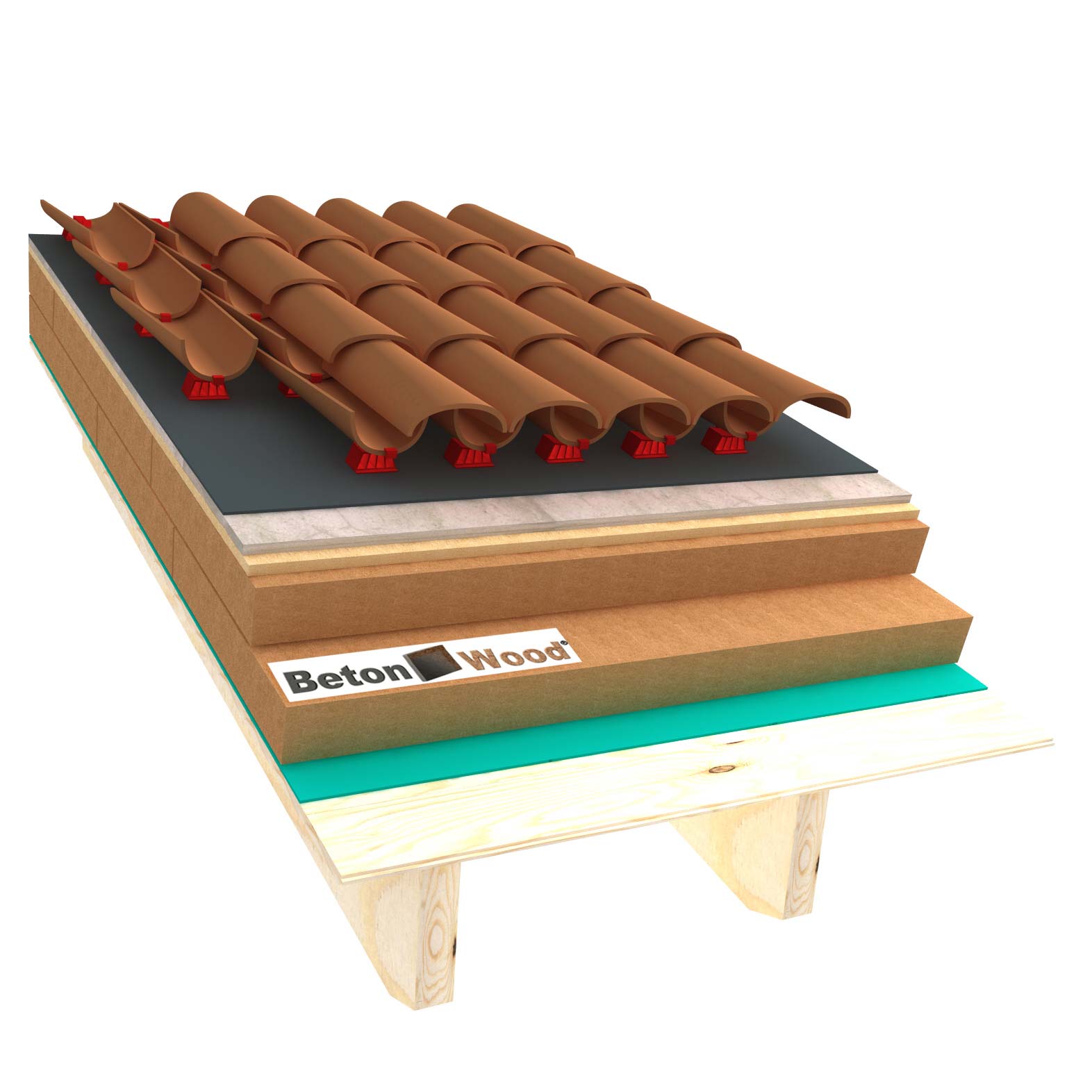

High thermal displacement ventilated roof system with Aercoppi and high density wood fiber FiberTherm Isorel, Universal dry with excellent thermal insulation power and cement bonded particle boards on matchboarding.

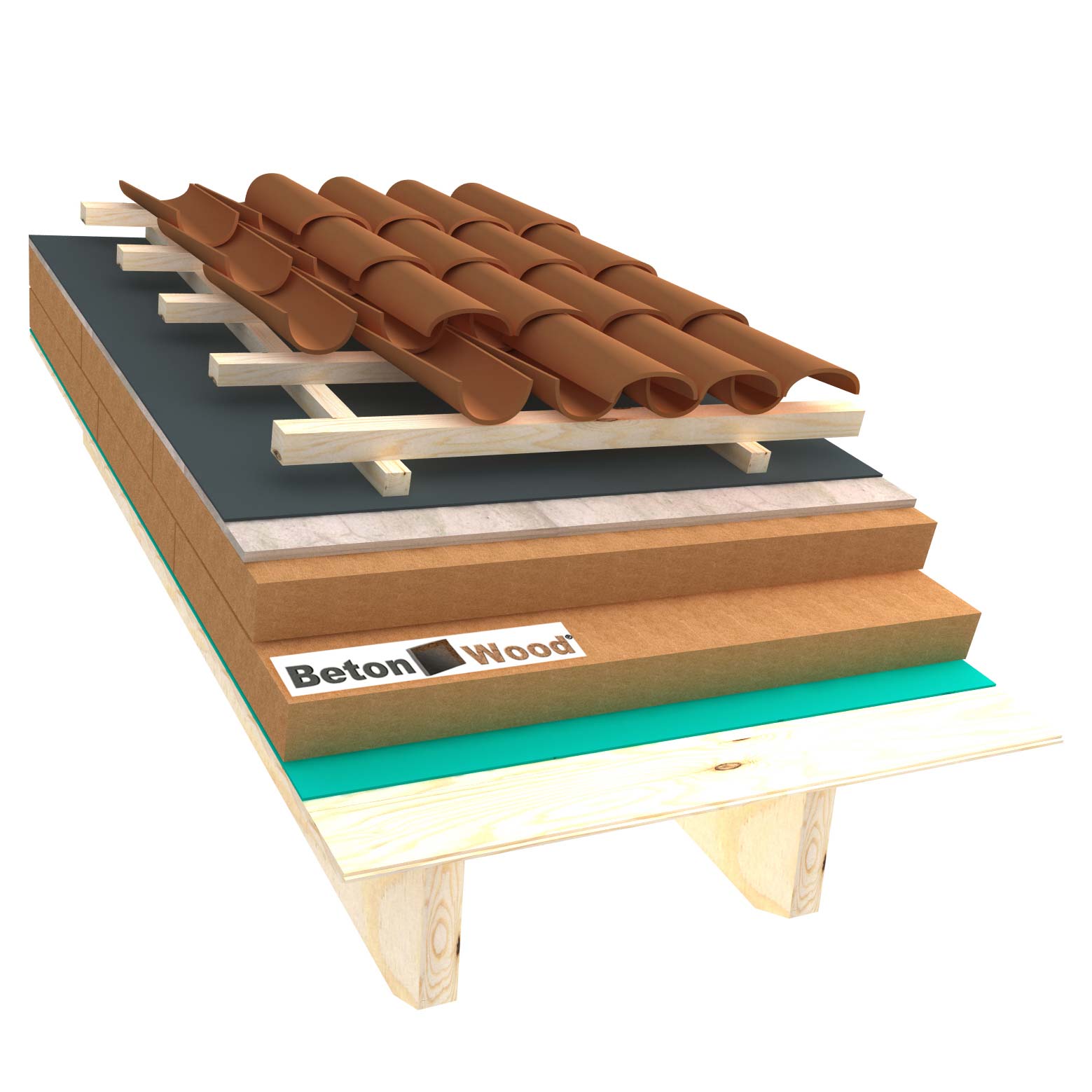

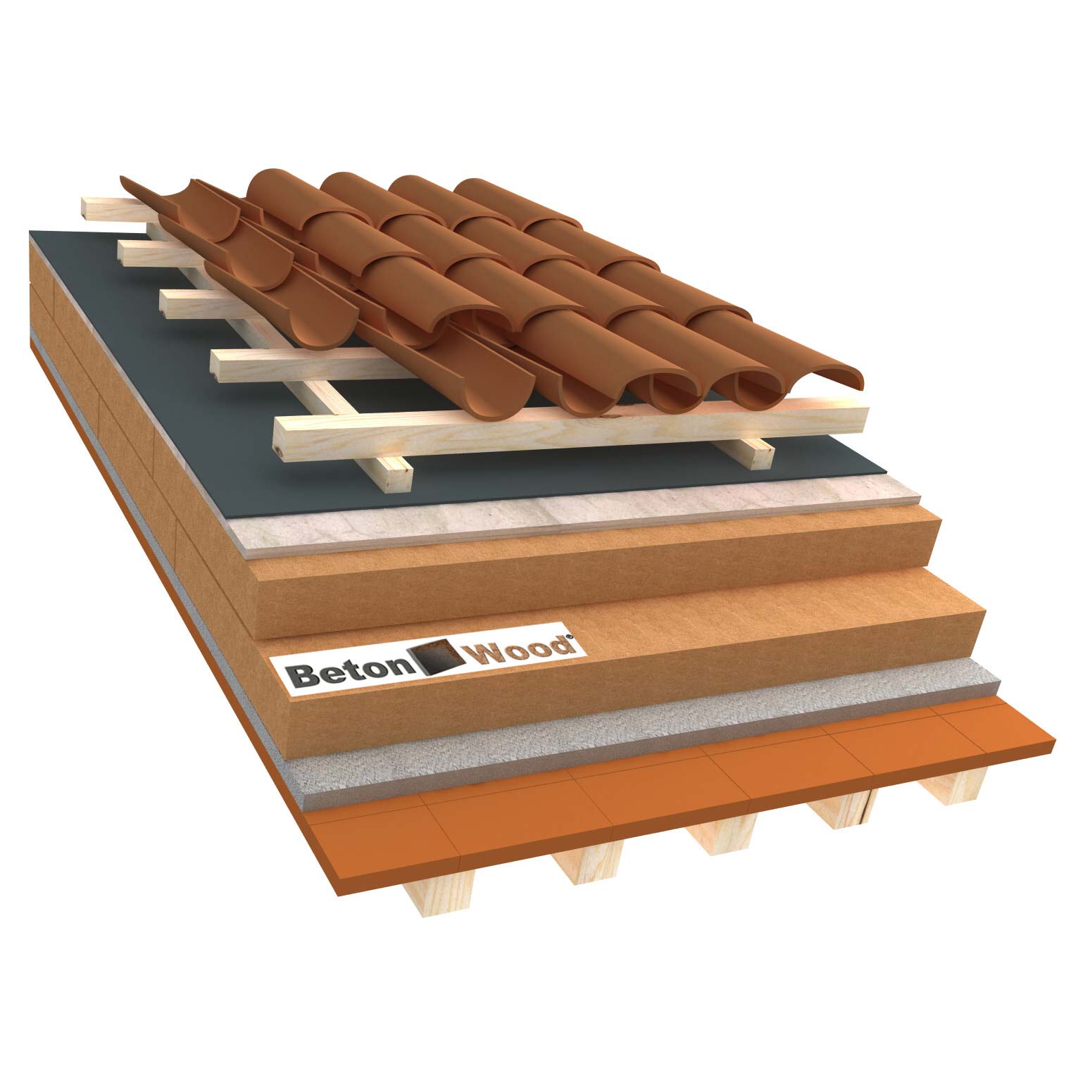

Ventilated roof system with high density and excellent thermal insulating wood fiber FiberTherm Universal dry and cement bonded particle boards on matchboarding.

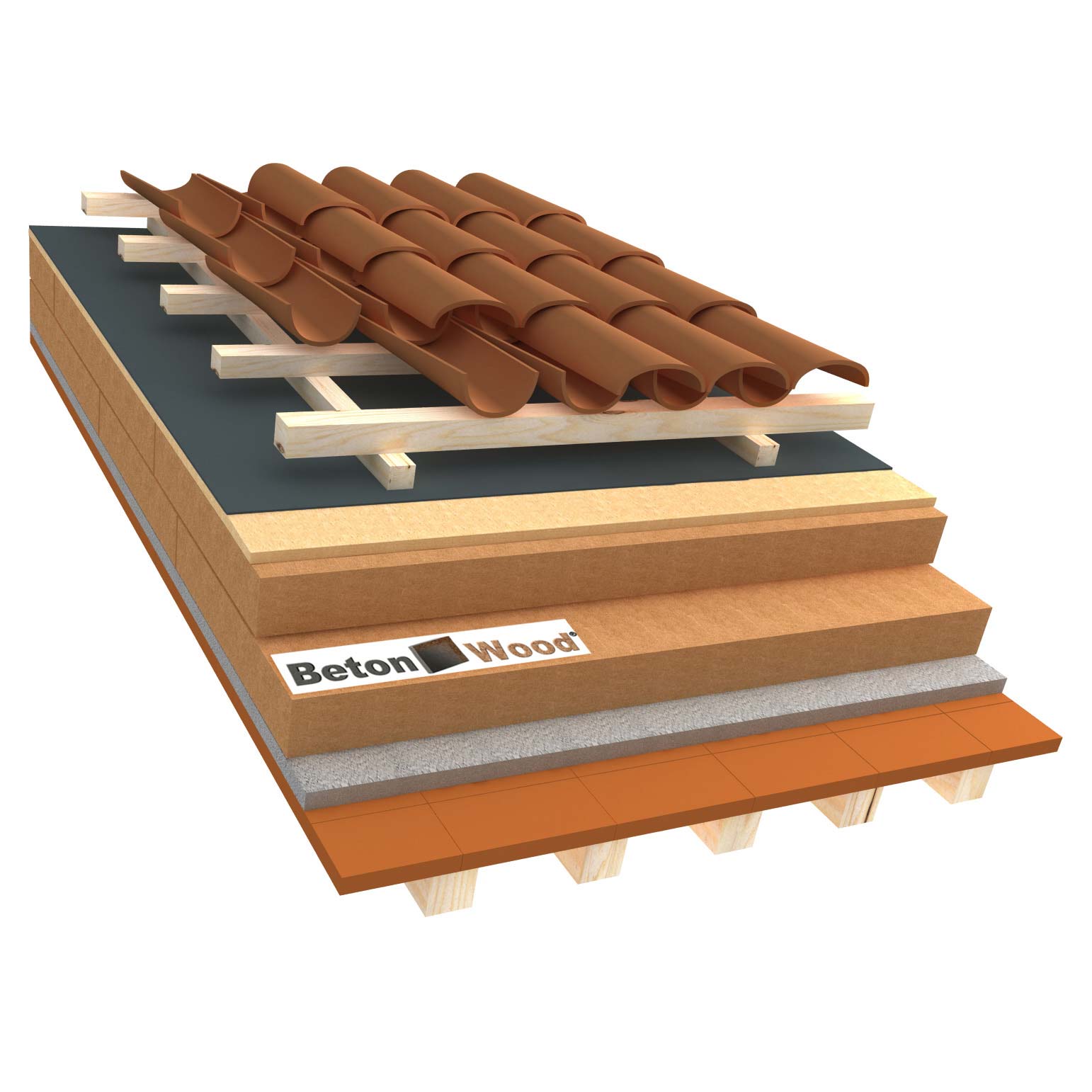

Ventilated roof system with high density and excellent thermal insulating wood fiber FiberTherm Isorel, Universal dry on matchboarding.
High thermal displacement ventilated roof system with wood beams and high density wood fiber FiberTherm Isorel, Universal dry with excellent thermal insulation power and cement bonded particle boards on matchboarding.

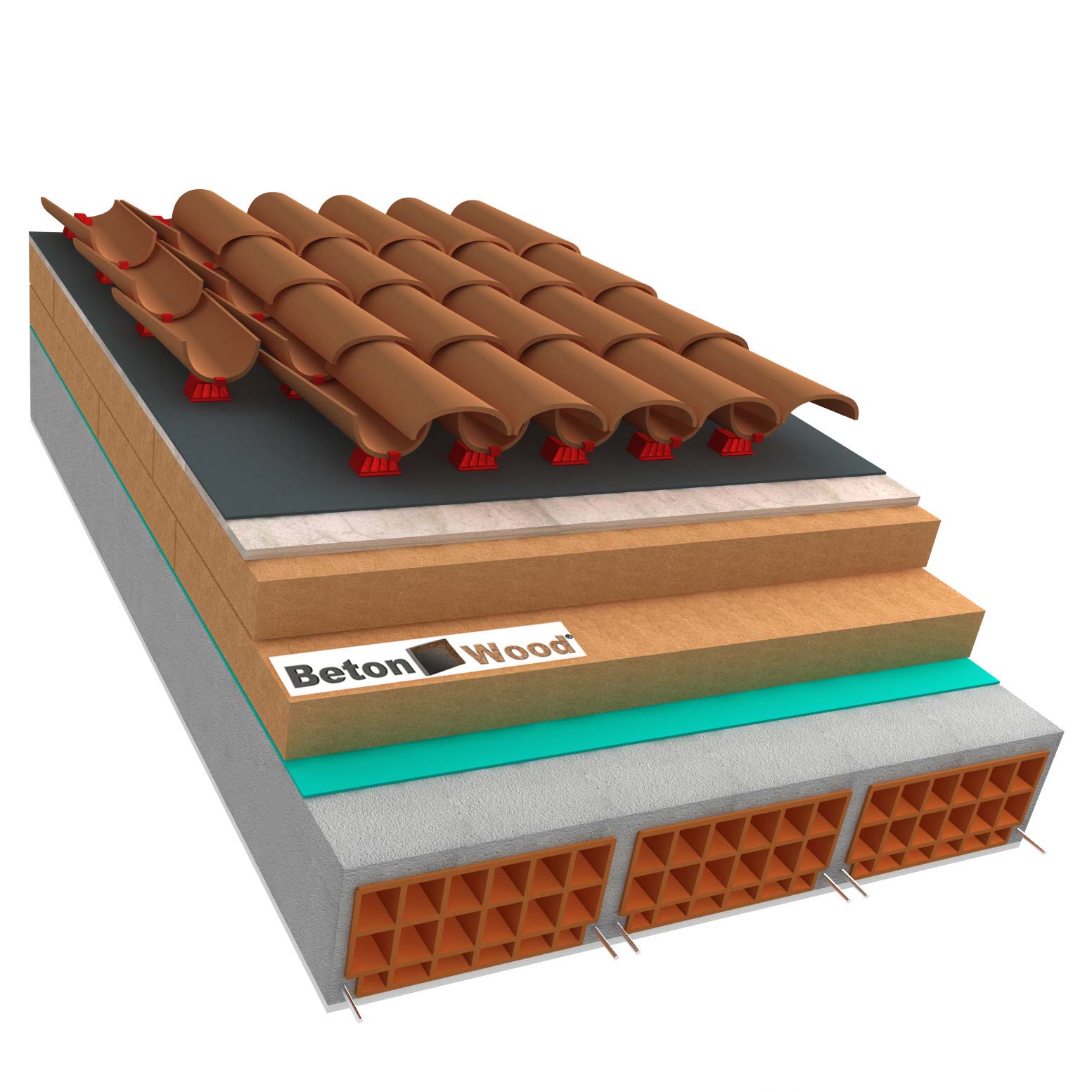

Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Universal dry and cement bonded particle boards with excellent thermal insulation power on concrete support.
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Isorel, Universal dry with excellent thermal insulation power on concrete support.

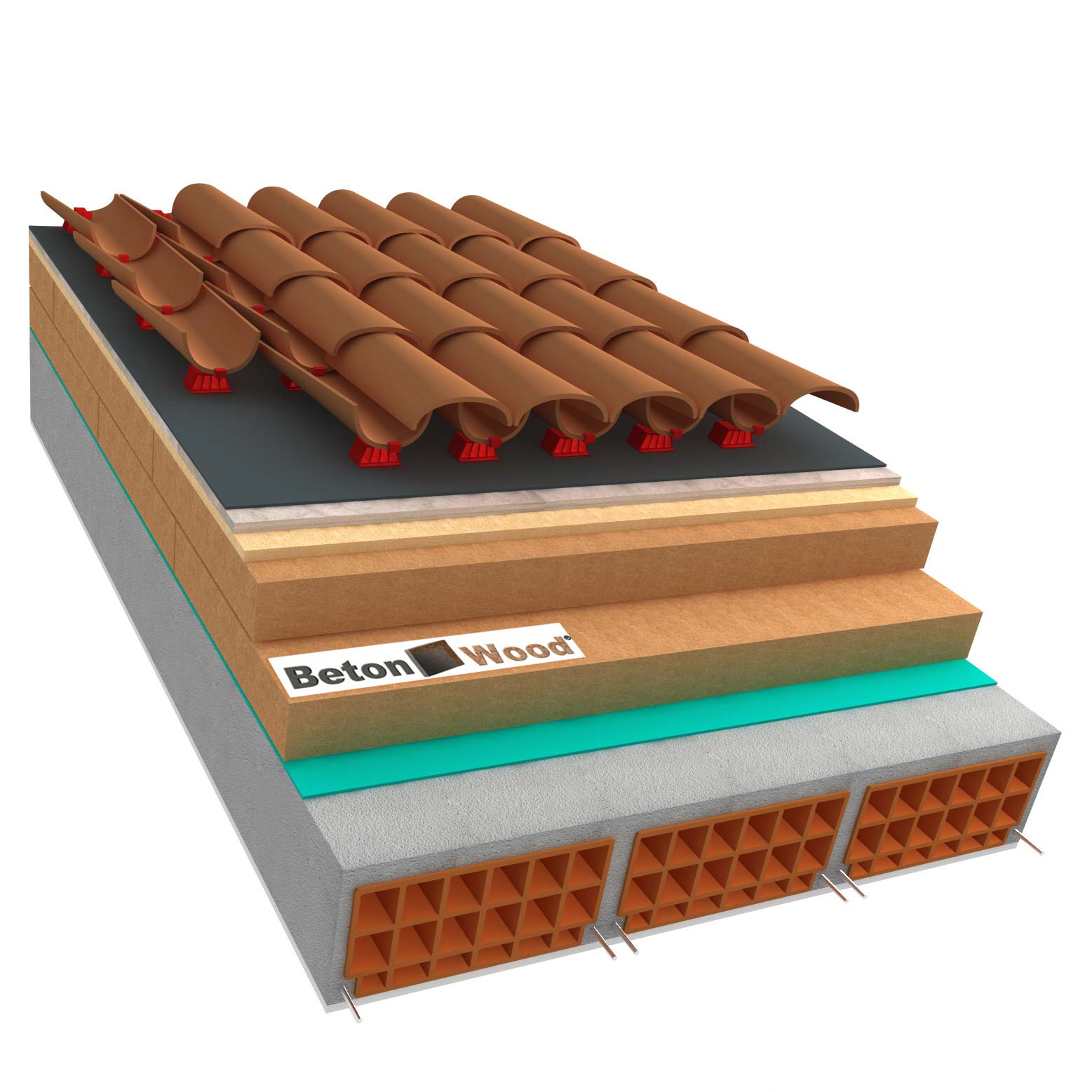

High thermal displacement ventilated roof system with Aercoppi and high density wood fiber FiberTherm Isorel, Universal dry with excellent thermal insulation power and cement bonded particle boards on concrete support.

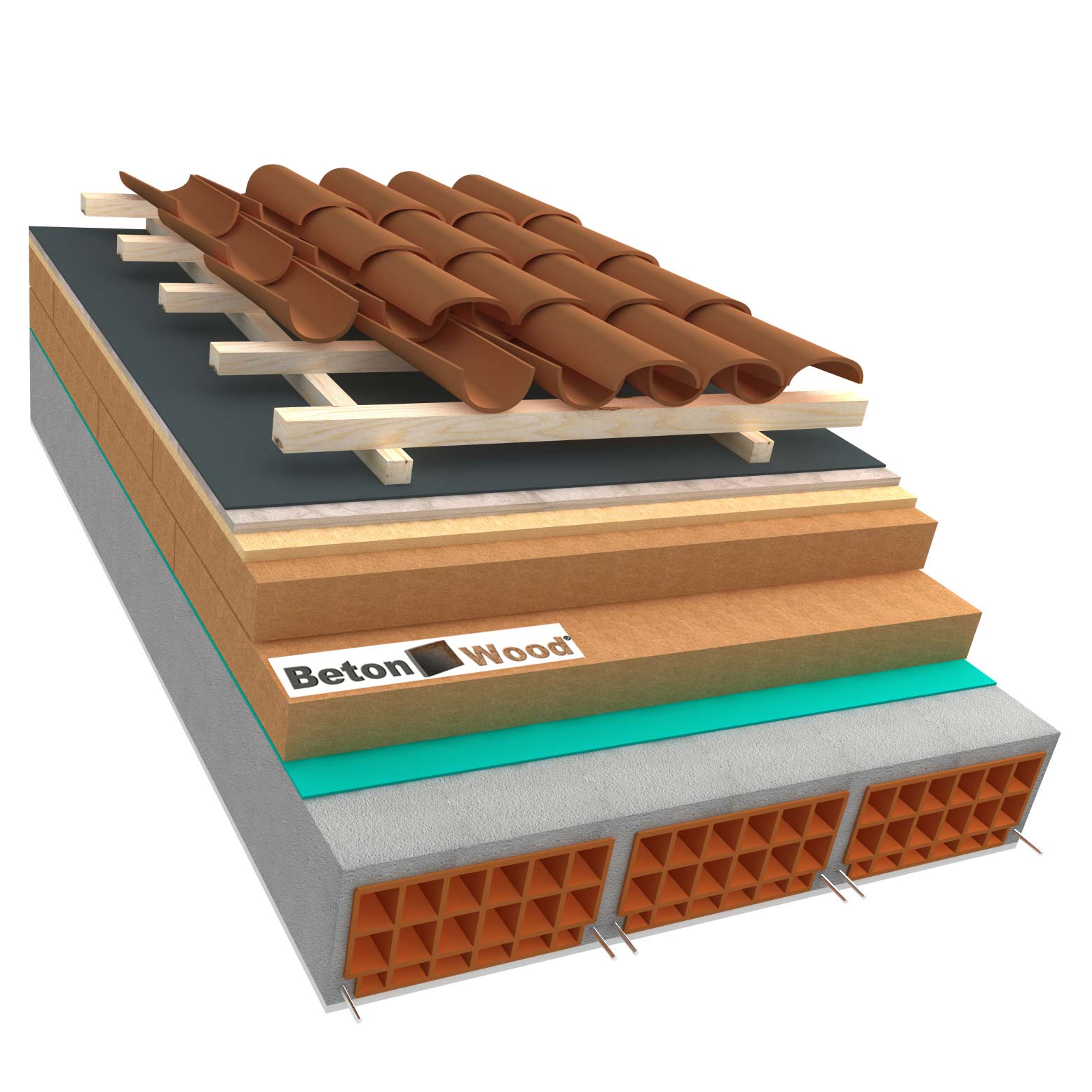

Ventilated roof system with high density and excellent thermal insulating wood fiber FiberTherm Universal dry and cement bonded particle boards on concrete support.

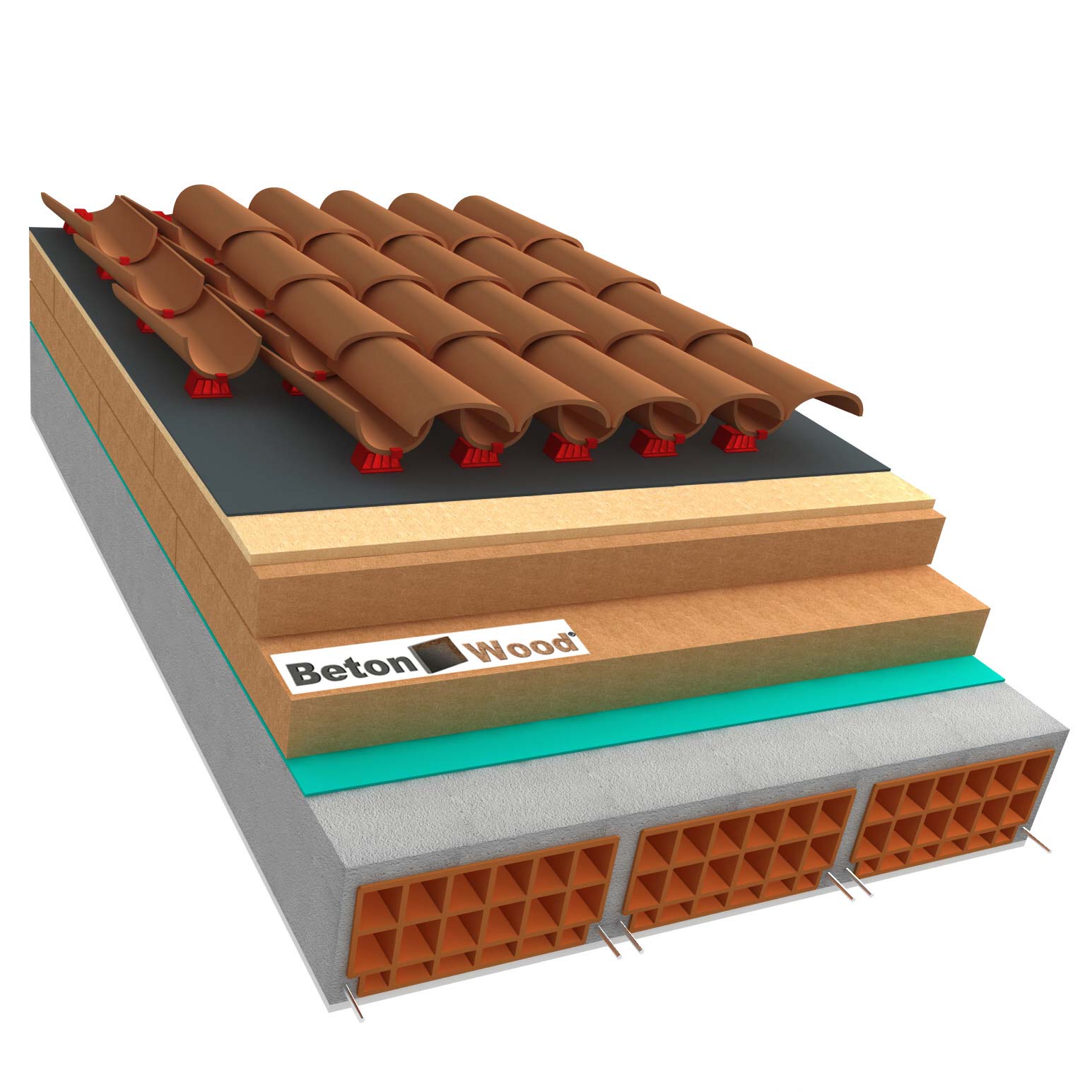

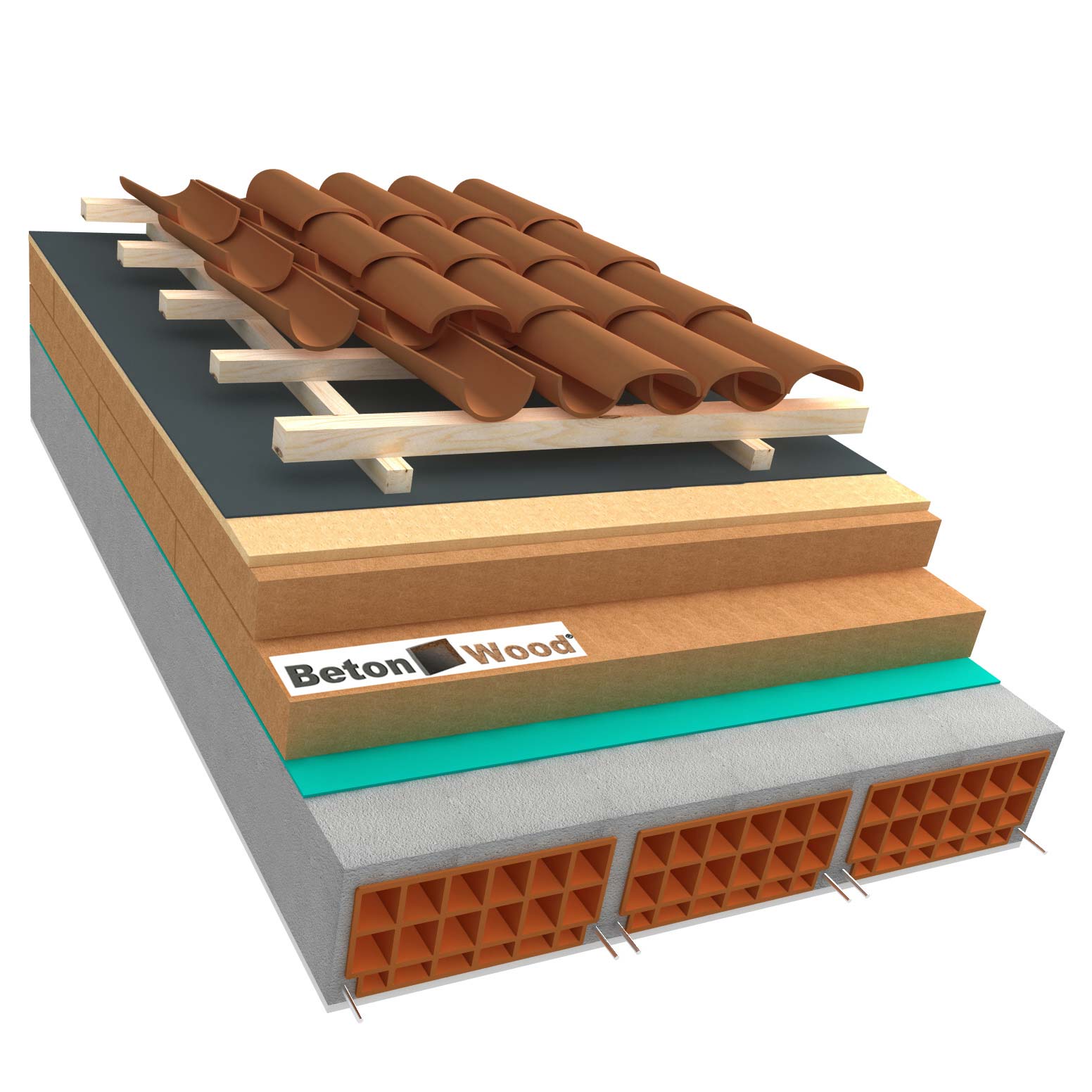

Ventilated roof system with high density and excellent thermal insulating wood fiber FiberTherm Isorel, Universal dry on concrete support.
High thermal displacement ventilated roof system with wood beams and high density wood fiber FiberTherm Isorel, Universal dry with excellent thermal insulation power and cement bonded particle boards on concrete support.
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Universal dry and cement bonded particle boards with excellent thermal insulation power on terracotta tiles.
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Isorel, Universal dry with excellent thermal insulation power on terracotta tiles.

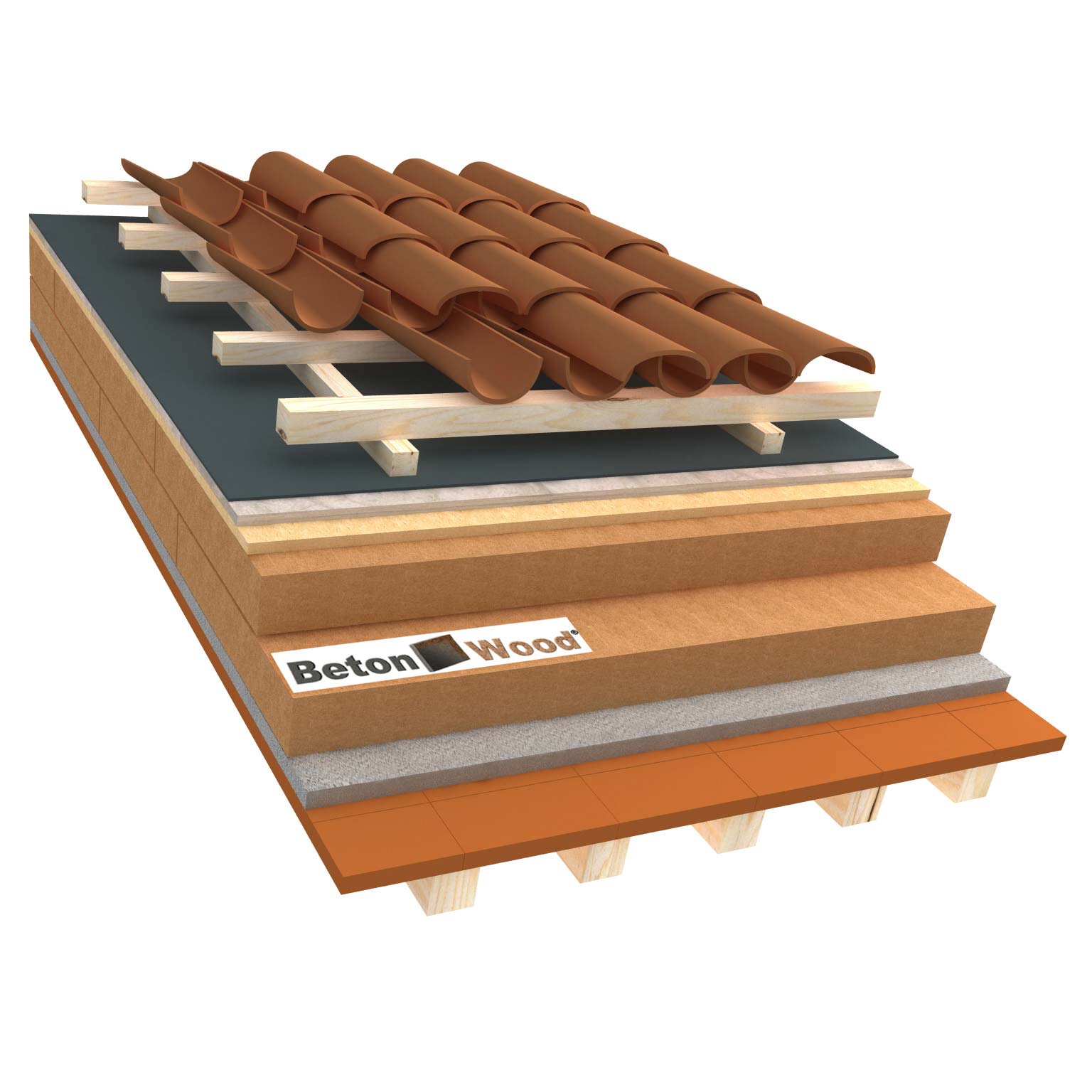

High thermal displacement ventilated roof system with wood beams and high density wood fiber FiberTherm Isorel, Universal dry with excellent thermal insulation power and cement bonded particle boards on terracotta tiles.

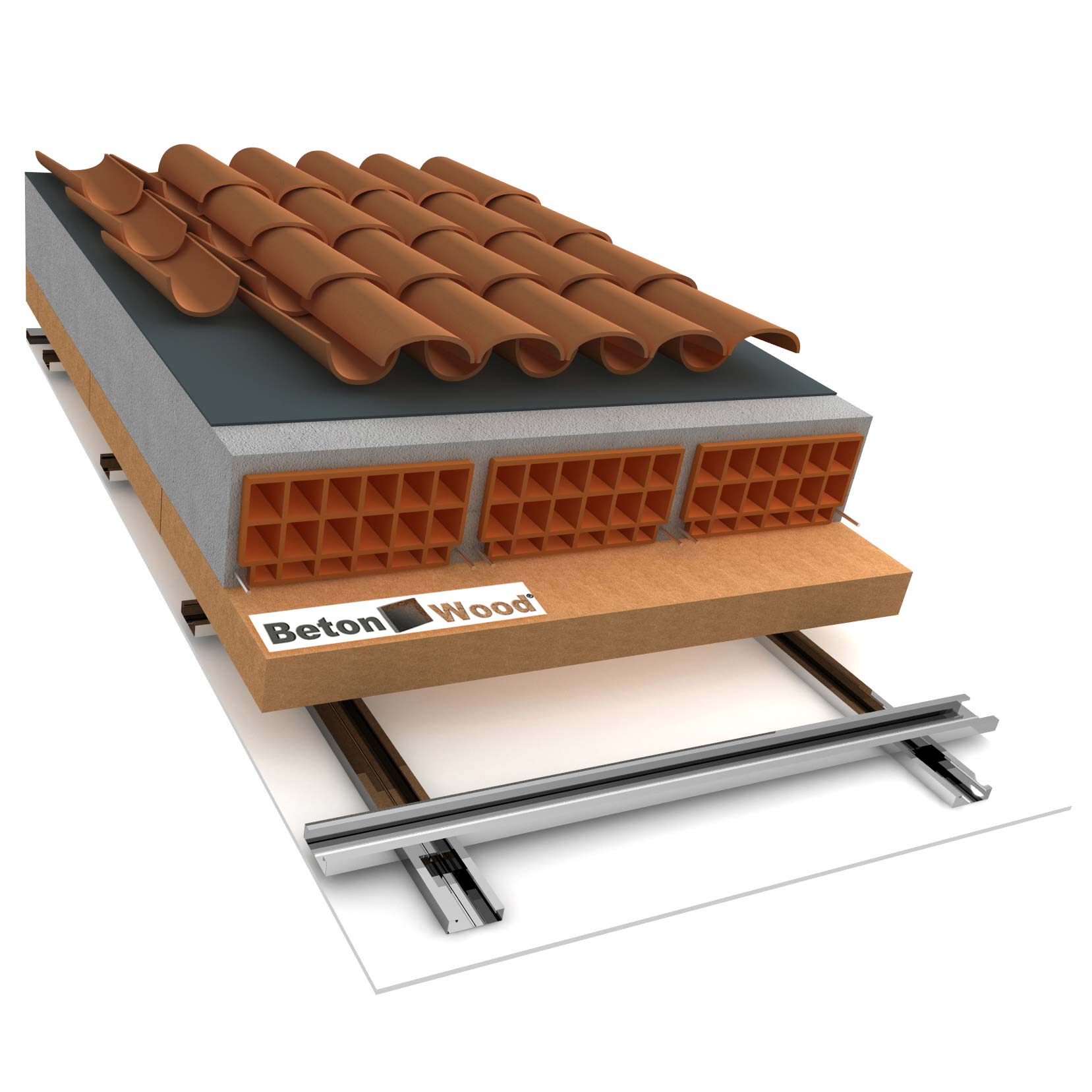

High insulating ceiling in wood fiber panels FiberTherm posato fixed in metal or wooden frame and covered with plasterboards.
