Wood fiber Bitumfiber density 230kg/m³

Bituminous Wood fiber BitumFiber density 230kg/m³

Bituminous Wood fiber panels with density 230 Kg/m³.
BitumFiber in bituminous wood fiber is a panel which, thanks to its high compressive resistance and its high density, is ideal to realize dry and wet screeds, flooring system with cement bonded particle board BetonWood.

The bituminous wood fiber panel BitumFiber is a separating element under concrete screeds, and is obtained from the felting and drying of wood fibers impregnated with 10% of bitumen dried during manufacture (percentage of reinforced bitumen upon request).
Excellent soundproofing in foot traffic improves the phonic comfort in the rooms and promotes the diffusion of water vapor, so as to minimize the formation of mold.

The bituminous wood fiber panels BitumFiber 230 are hygrometric regulators; protect buildings with wooden or metal structure from rain and wind.
It reduces vibrations. It has a density of 230 kg/m³.

The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).


The insulating bituminous wood fiber panel BitumFiber 230 is an excellent material to realize dry and wet screeds, flooring systems and walkable floors:

• the panels are produced in compliance with the current European standards (EN13986 and EN622-4) with continuous external supervision and in compliance with the compression, extrusion and recovery requirements of the American Standard ASTMD1751;
• the natural wood fibers used as raw material are not irritating, especially for the skin;
• the wood comes from forests controlled by FSC reforestation cycles (Forest Stewardship Council);
• unlike some other insulating materials, there is no need for special safety measures;
• the panels are easy to work with common wood machines;
• building material tested and authorized according to current European standards.

Suitable sizes

wood fiber panels with sharp edges
Thickness Size mm kg/m² Pan./pallet m²/pallet kg/pallet
10 mm 2500 x 1200 2,20 114 342,0 approx.790
12 mm 2500 x 1200 2,64 95 285,0 approx.790
15 mm 2500 x 1200 3,30 76 228,0 approx.790
19 mm 2500 x 1200 4,18 60 180,0 approx.790


Technical characteristics

Characteristics Values
Density kg/m³ 230
Fire reaction according to EN 13501-1 E
Coefficient of thermal conductivity λD W/(m∗K) 0,050
Specific heat J/(kg∗K) 2.100
Resistance to vapor diffusion μ 5
Thermal resistance RD (m²·K)/W 0,20(10) /0,24(12)
0,30(15)/ 0,38(19)
Compressive strenght (kPa) 100
Tensile strenght (kPa) ≥10
Panels identification EN 622-4 SB.H-E1
Waste code (EAK) 030105/170201


Solutions with bituminous wood fiber Bitumfiber

Dry screed with bituminous fiber wood insulation BitumFiber
Dry screed with fiber wood BitumFiber

Flooring system using bituminous fiber wood panels with high density and excellent compression resistance FiberTherm BitumFiber and cement bonded particle boards BetonWood.

SEE MORE
Wood fiber BitumFiber under concrete screed
Wood fiber BitumFiber and concrete screed

Flooring system using bituminous fiber wood panels with high density and high thermal insulation, concrete constructional work and cement bonded particle boards BetonWood.

SEE MORE
Screed with fiber wood on corrugated metal sheet
Screed with fiber wood on corrugated sheet

Screed system on corrugated metal sheet with high density and high compression resistance bituminous fiber wood BitumFiber and a double layer of cement bonded particle boards BetonWood.

SEE MORE
Radiant natural screed with fiber wood BitumFiber
Radiant screed with fiber wood BitumFiber

Radiant natural screed BetonRadiant with thermal and acoustic insulation in high compression resistance bituminous fiber wood panels BitumFiber.

SEE MORE
Radiant screed with fiber wood BitumFiber on wooden floors
Radiant screed with fiber wood BitumFiber on wooden floors

Radiant natural screed BetonRadiant with thermal and acoustic insulation in high compression resistance bituminous fiber wood panels BitumFiber on wooden floors.

SEE MORE

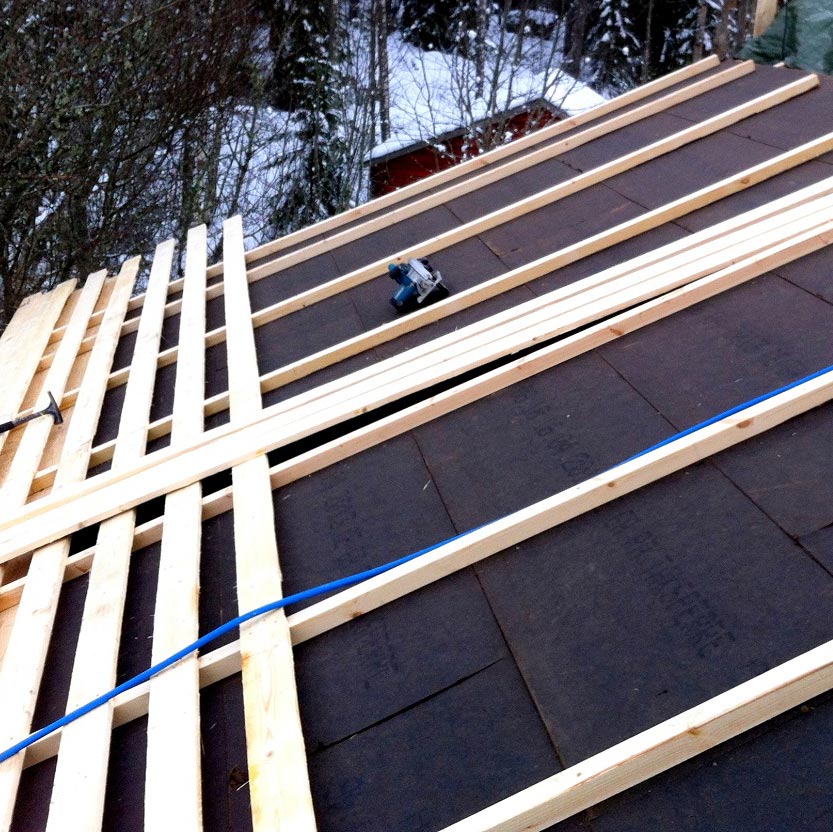

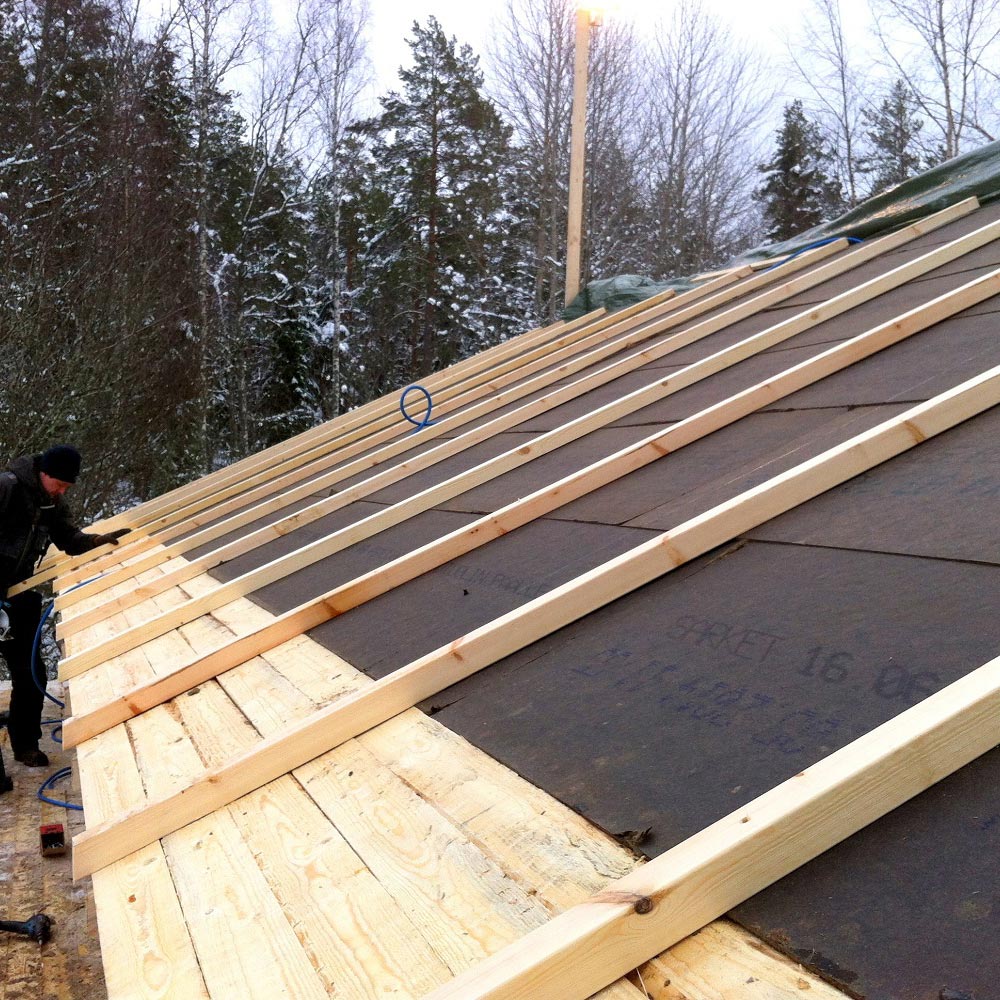

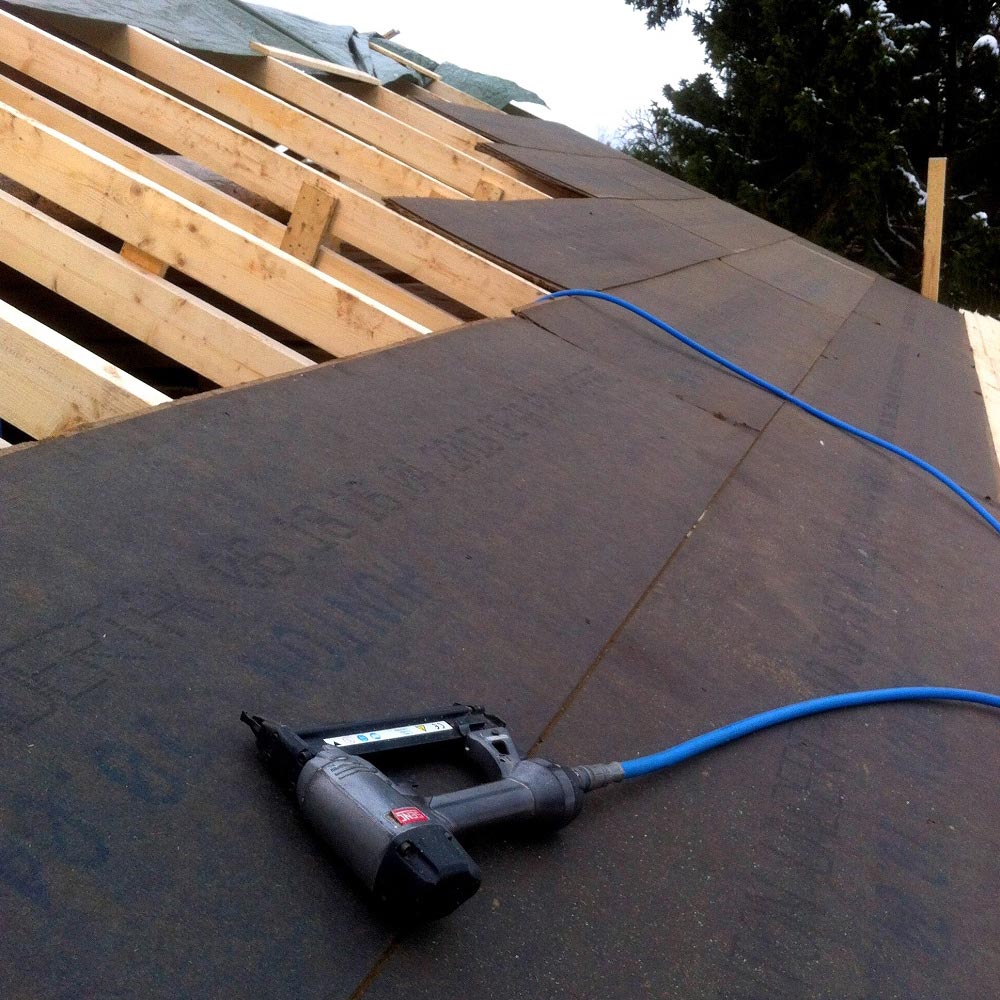

Fiber wood, Bitumfiber, BetonWood wood roof with Aerocoppo
Fiber wood, Bitumfiber, BetonWood roof with Aerocoppo

Ventilated roofs with double fiber wood FiberTherm panels, vapour barrier, a sigle layer of bituminous fiber wood Bitumfiber and cement bonded particle boards BetonWood N.

SEE MORE
Fiber wood, Bitumfiber, BetonWood wood roof
Fiber wood, Bitumfiber, BetonWood wood roof

Ventilated roofs with double fiber wood FiberTherm panels, vapour barrier, a sigle layer of bituminous fiber wood Bitumfiber and cement bonded particle boards BetonWood N.

SEE MORE
Fiber wood, Bitumfiber, BetonWood concrete roof with Aerocoppo
Fiber wood, Bitumfiber, BetonWood concrete roof with Aerocoppo

Ventilated roofs with double fiber wood FiberTherm panels, vapour barrier, a sigle layer of bituminous fiber wood Bitumfiber and cement bonded particle boards BetonWood N.

SEE MORE
Fiber wood, Bitumfiber, BetonWood concrete roof
Fiber wood, Bitumfiber, BetonWood concrete roof

Ventilated roofs with double fiber wood FiberTherm panels, vapour barrier, a sigle layer of bituminous fiber wood Bitumfiber and cement bonded particle boards BetonWood N.

SEE MORE
Fiber wood, Bitumfiber, BetonWood wood roof
Fiber wood Therm and Bitumfiber wood roof with Aerocoppo

Ventilated roofs with double fiber wood FiberTherm panels, vapour barrier and a sigle layer of bituminous fiber wood Bitumfiber.

SEE MORE
Fiber wood Therm and Bitumfiber wood roof
Fiber wood Therm and Bitumfiber wood roof

Ventilated roofs with double fiber wood FiberTherm panels, vapour barrier and a sigle layer of bituminous fiber wood Bitumfiber.

SEE MORE
Fiber wood Therm and Bitumfiber concrete roof
Fiber wood Therm and Bitumfiber concrete roof with Aerocoppo

Ventilated roofs with double fiber wood FiberTherm panels, vapour barrier and a sigle layer of bituminous fiber wood Bitumfiber.

SEE MORE
