Wood fiber Isorel density 230kg/m³

Wood fiber FiberTherm Isorel density 230kg/m³

Wood fiber panels with a density of 230 Kg/m³.
Fibertherm Isorel is a multi-use rigid wood fiber panel for insulation even with reduced thickness of internal walls, floors and flat roofs. Ideal for roof insulation in wooden buildings, but also in renovations and new traditional buildings.

The wood fiber panel FiberTherm Isorel 230 is a rigid multi-use insulation for walls, floors and roofs, ideal for insulating in a completely natural way and with reduced thicknesses.
It's easy and quick to install

With the insulating wood fiber panels FiberTherm Isorel 230 is possible to insulate your building completely naturally and with reduced thickness, ensuring the creation of environments with a high living comfort as well as a truly healthy indoor atmosphere.
The FiberTherm Isorel 230 panel is produced with wet system, the only one to guarantee the complete compatibility of the material with the criteria of green building, because it is free from any type of toxic substance. Density equal to 230 kg/m³.

The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).


The insulating wood fiber panels FiberTherm Isorel 230 is an excellent thermo-acoustic insulation for flat roofs, walls and floors:

• high acoustic insulation;
• adequate protection against atmospheric agents;
• high compression resistance;
• very good thermal insulation in winter and summer;
• contributes to the maintenance of a mild internal climate;
• autonomous heating with high absorption capacity;
• recyclable, ecologic, environment-friendly;
• building material tested and authorized according to current European standards.

The insulating wood fiber panel FiberTherm Isorel 230 is suitable for any type of thermal and acoustic insulation which requires reduces thicknesses and an high compression resistance.
In particular this material can be used for the realization of:

• substrates for floors with impact sound insulation;

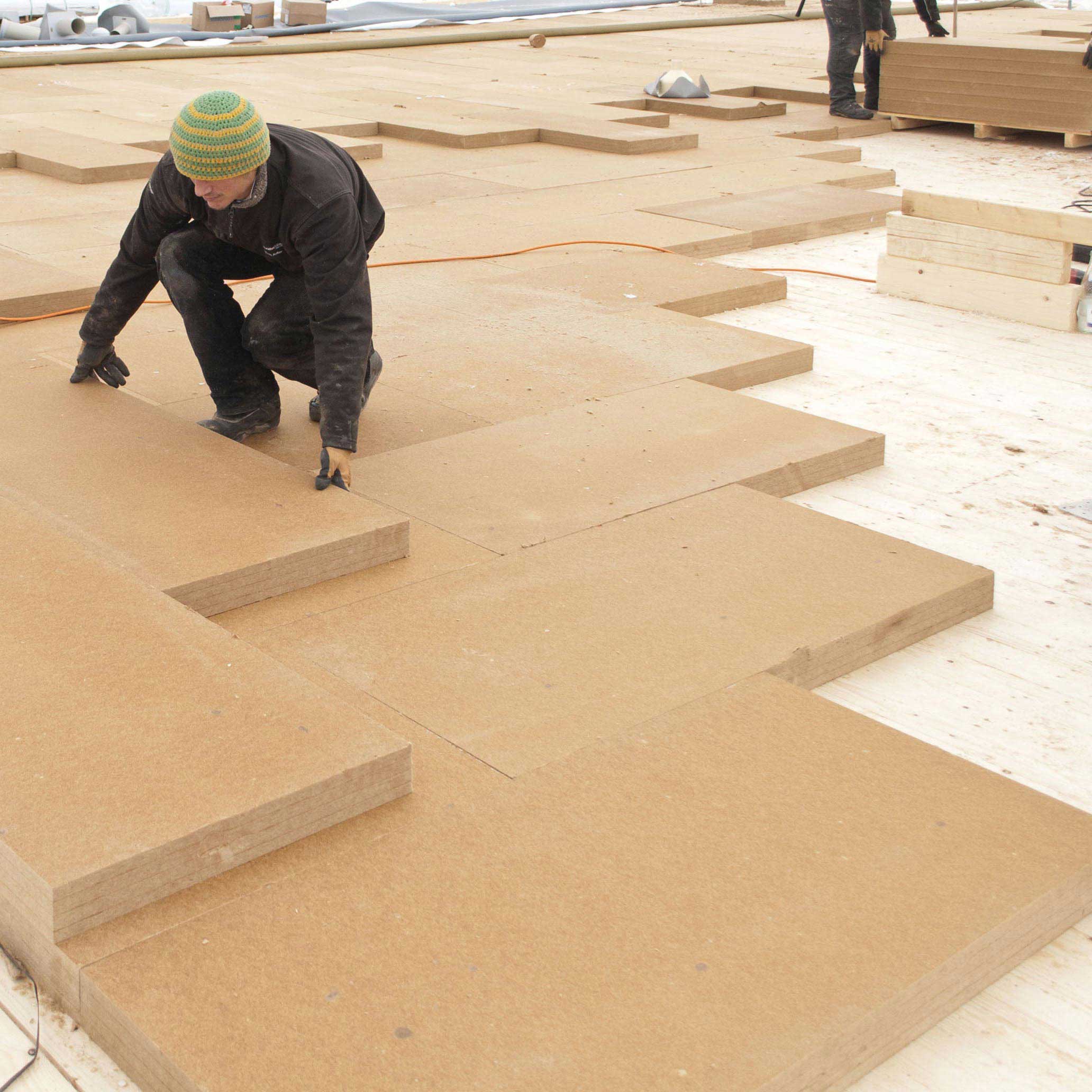

• external insulation of ceiling and flat and pitched roofs;

• under-tile insulation, with adequate insulation protection;

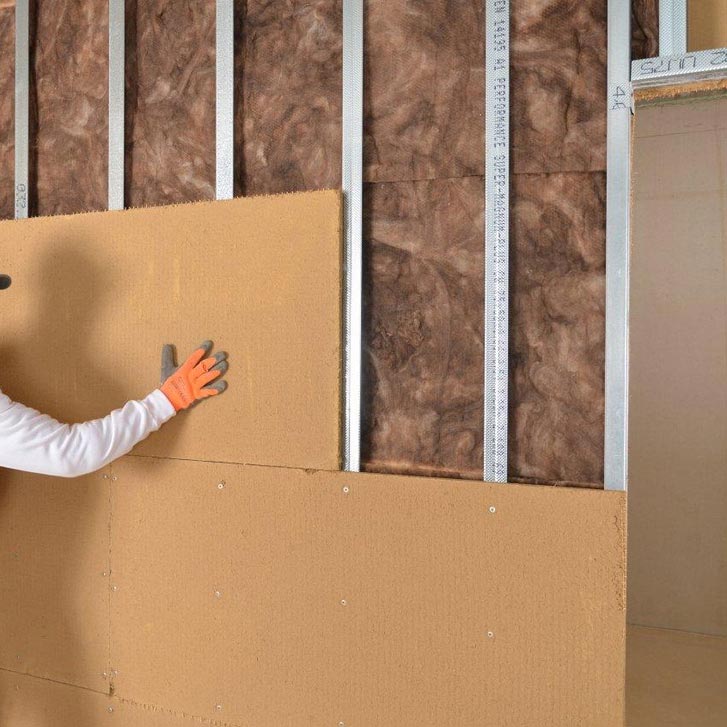

• walls insulation in dry systems;

• cavieties insulation in dry systems;

• internal insulation of walls.


Applications


The installation is strictly linked to the type of use of the panel depending on which it will be appropriate to adopt the most suitable application method.
In general it is always necessary to protect this material from moisture both before laying and during the storage phase on site and before the realization of the covering.
In case of exposure of the material to the water let the material dry.


Available sizes

wood fiber panels with sharp edges
Thickness Size mm kg/m² Pan./pallet m²/pallet kg/pallet
8 mm 1200 x 1000 2,00 138 165,0 approx.350
10 mm 2500 x 1200 2,20 114 342,0 approx.790
12 mm 2500 x 1200 2,64 95 285,0 approx.790
15 mm 2500 x 1200 3,30 76 228,0 approx.790
19 mm 2500 x 1200 4,18 60 180,0 approx.790


Technical characteristics

Characteristics Values
Density kg/m³ 230
Fire reaction according to EN 13501-1 E
Coefficient of thermal conductivity λD W/(m∗K) 0,050
Specific heat J/(kg∗K) 2.100
Resistance to vapor diffusion μ 5
sd values (m) 0,04 (8)/ 0,05(10) /0,06(12)
0,08(15)/ 0,10(19)
Thermal resistance RD (m²·K)/W 0,16 (8)/ 0,20(10) /0,24(12)
0,30(15)/ 0,38(19)
Bending resistance
to 10% of compression (N/mm²)
≥0,10
Compression resistance (kPa) ≥100
Resistance to tearing (kPa) ≥10
Hydraulic resistance relative
to lenght [(kPa·s)/m²]
≥100
Panels identification EN 622-4 SB-E1
Waste code (EAK) 030105/170201
