Wood fiber panels with density 240 Kg/m³.
Fibertherm Special is a wood fiber panel for thermal and acoustic insulation on the outside of flat or pitched roofs, resistant to wind and humidity and with an high density. Ideal for roof insulation in wooden buildings, but also in renovations and new traditional buildings.

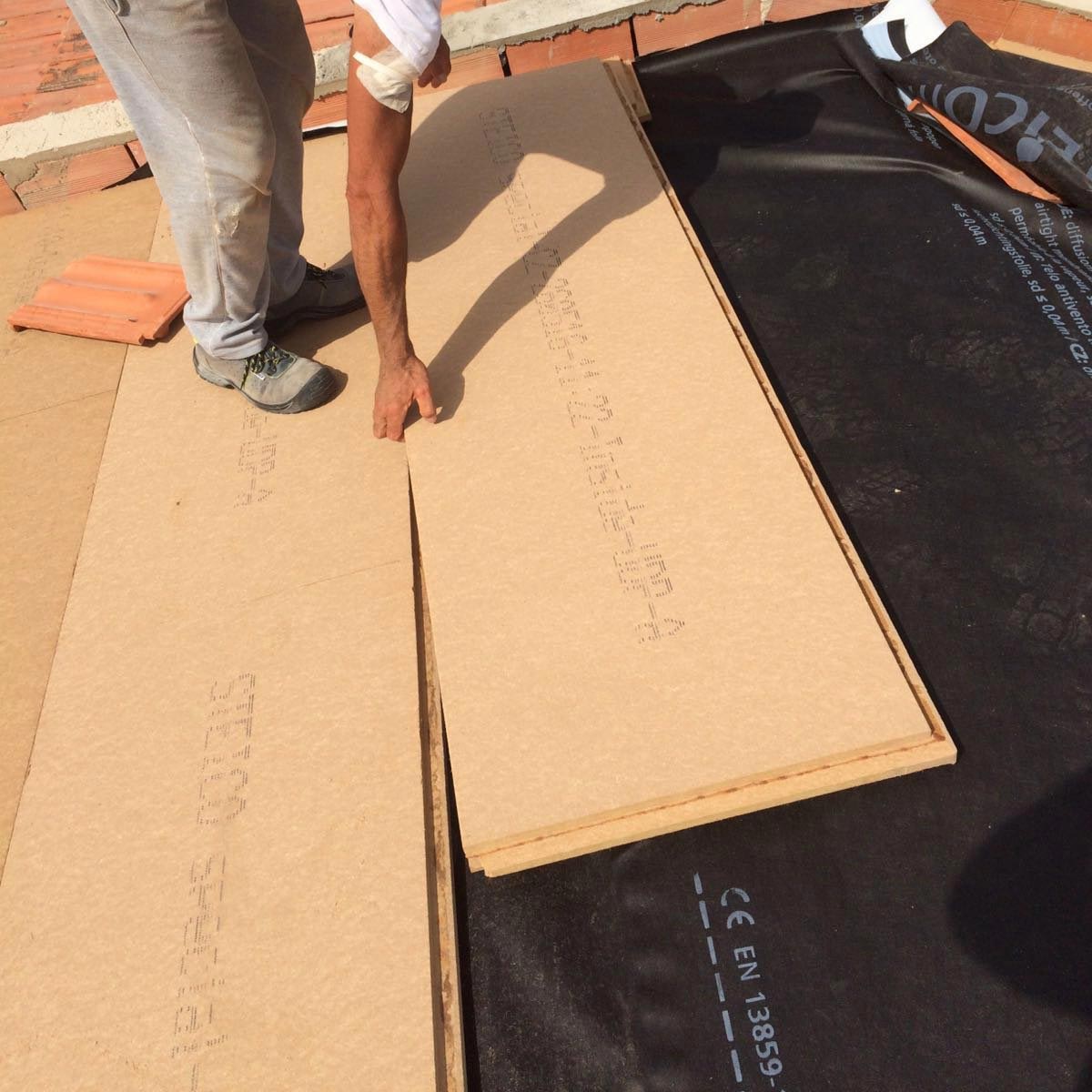

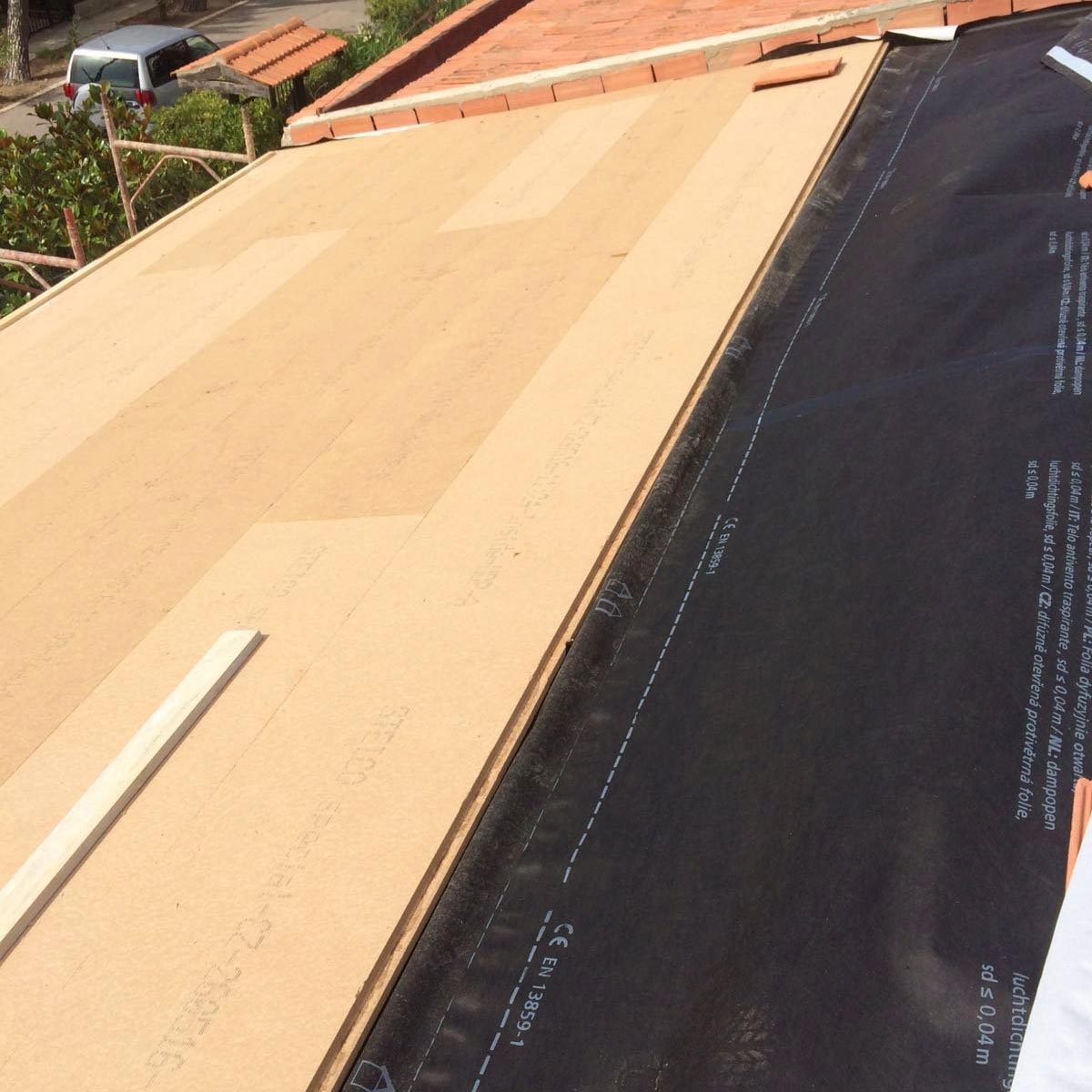

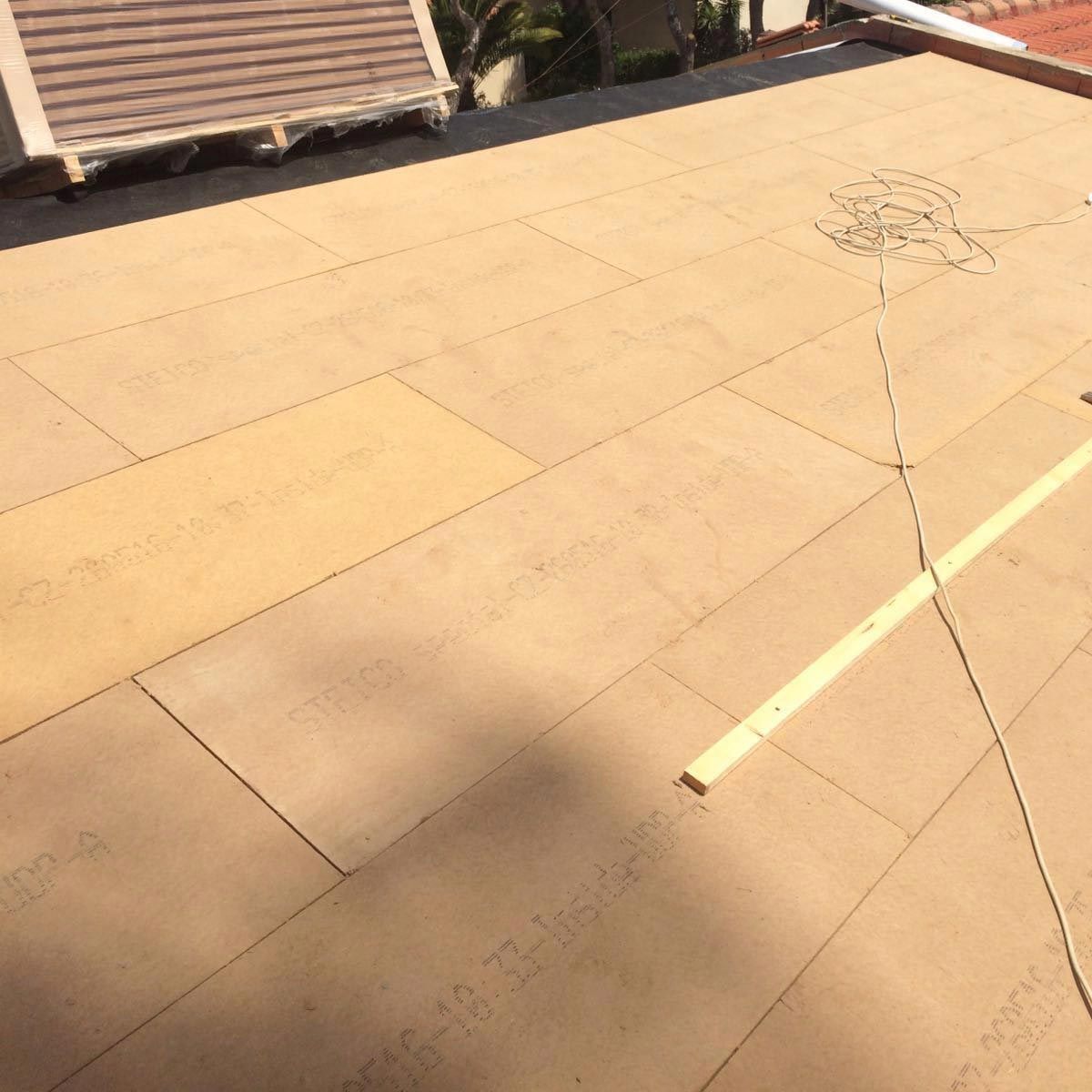

Wood fiber panels FiberTherm Special 240: the roof, due to its large surface tends to lose a lot of thermal energy. As a result, potential savings in restructuring are also lost. But what if the attic is already developed and inhabited? At BetonWood we offer the FiberTherm special solution, a rigid wood-fiber insulating panel that can be placed directly from the outside on the beams.
Ideally, the area must first be insulated between the beams, for example with FiberTherm Flex 60, the flexible insulating wood fiber system. Often, only the old construction beams are too small to make modern insulation systems. With the FiberTherm special dry wood fiber it is possible to provide the additional insulation required above the beams. The living space under the roof is not compromised. Density equal to 240 kg/m³.
The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).
To repair the external part of the roof, it is necessary to ensure the protection from the weather for the underlying surface as soon as possible.
The panel profile FiberTherm Special 240 guarantees wind resistance, suitability and drainage of water, without further joints for roofs with at least 16° inclinations.
FiberTherm special protects from the weather on the installation day.
The insulating wood fiber panel FiberTherm special 240 is an excellent thermal and acoustic insulation for new roof and renovations. This type of wood fiber has the following characteristics:
• insulation insulation panel for further insulation above the beams;
• 3 advantages: wind protection, weather protection, thermal insulation;
• reduce the thermal bridges;
• protects from hail;
• high resistance to summer heat and good sound insulation;
• greater structural security in the field of restructuring;
• panel typologies: UPD-A for pitched roof with ≥18° inclination. Also suitable as a temporary cover;
• tested dermatologically; without any negative effect on the skin;
• comprovata qualità di lunga durata;
• recyclable, ecologic, environment-friendly;
• building material tested and authorized according to current European standards.
• Very good thermal conductivity: FiberTherm special provides an excellent insulating value. The value of thermal conductivity λ is equal to 0,046 [W/(m·K)].
So, with FiberTherm Special 240 is possible to obtain an excellent thermal insulation applied also on particularly thin roof structures.
• safety protection from atmospheric agents: special tongue&groove profile of wood fiber panels FiberTherm Special dry has a specially developed geometry for easy installation and long life. The roof is well protected from rain and wind.
• Ecologic quality: BetonWood has developed a great experience in the production and use of wood fiber insulation materials. Independent certifications, such as the FSC label, have the function to confirm this quality.
Thickness | Size mm | kg/m² | Pan./pallet | m²/pallet | kg/pallet |
---|---|---|---|---|---|
60 mm | 1880 x 600 | 14,01 | 36 | 38,4 | approx.620 |
80 mm | 1880 x 600 | 18,44 | 28 | 29,9 | approx.620 |
100 mm | 1880 x 600 | 22,81 | 22 | 23,5 | approx.620 |
120 mm | 1880 x 600 | 27,21 | 18 | 19,2 | approx.620 |
Characteristics | Values |
---|---|
Density kg/m³ | 240 |
Fire reaction according to EN 13501-1 | E |
Coefficient of thermal conductivity λD W/(m∗K) | 0,046 |
Specific heat J/(kg∗K) | 2.100 |
Resistance to vapor diffusion μ | 5 |
sd values (m) | 0,3 (60)/ 0,4(80) /0,5(100) 0,6(120)/ 0,10(19) |
Thermal resistance RD (m²·K)/W | 1,30 (60)/ 1,70(80) /2,15(100) 2,60(120)/ 0,38(19) |
Compression stress to 10% of distortion (N/mm²) |
0,10 |
Compression resistance (kPa) | 100 |
Tensile resistance (kPa) | ≥10 |
Specific resistance to airflow [(kPa·s)/m²] |
≥100 |
Panels identification | WF-EN13171-T4 CS(10/Y)70-TR7,5-WS1,0 |
Waste code (EAK) | 030105/170201 |
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Special and cement bonded particle boards with excellent thermal insulation power on matchboarding.
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Isorel, Special with excellent thermal insulation power on matchboarding.
High thermal displacement ventilated roof system with Aercoppi and high density wood fiber FiberTherm Isorel, Special with excellent thermal insulation power and cement bonded particle boards on matchboarding.
Ventilated roof system with high density and excellent thermal insulating wood fiber FiberTherm Special and cement bonded particle boards on matchboarding.
Ventilated roof system with high density and excellent thermal insulating wood fiber FiberTherm Isorel, Special on matchboarding.
High thermal displacement ventilated roof system with wood beams and high density wood fiber FiberTherm Isorel, Special with excellent thermal insulation power and cement bonded particle boards on matchboarding.
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Special and cement bonded particle boards with excellent thermal insulation power on concrete support.
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Isorel, Special with excellent thermal insulation power on concrete support.
High thermal displacement ventilated roof system with Aercoppi and high density wood fiber FiberTherm Isorel, Special with excellent thermal insulation power and cement bonded particle boards on concrete support.
Ventilated roof system with high density and excellent thermal insulating wood fiber FiberTherm Special and cement bonded particle boards on concrete support.
Ventilated roof system with high density and excellent thermal insulating wood fiber FiberTherm Isorel, Special on concrete support.
High thermal displacement ventilated roof system with wood beams and high density wood fiber FiberTherm Isorel, Special with excellent thermal insulation power and cement bonded particle boards on concrete support.
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Special and cement bonded particle boards with excellent thermal insulation power on terracotta tiles.
Ventilated roof system with Aercoppi and high density wood fiber FiberTherm Isorel, Special with excellent thermal insulation power on terracotta tiles.
High thermal displacement ventilated roof system with wood beams and high density wood fiber FiberTherm Isorel, Special with excellent thermal insulation power and cement bonded particle boards on terracotta tiles.
High insulating ceiling in wood fiber panels FiberTherm Special posato fixed in metal or wooden frame and covered with plasterboards.
